Setup, test and manage Web Hooks

1. Click the Business Settings menu.
2. Click the Payroll Settings submenu.

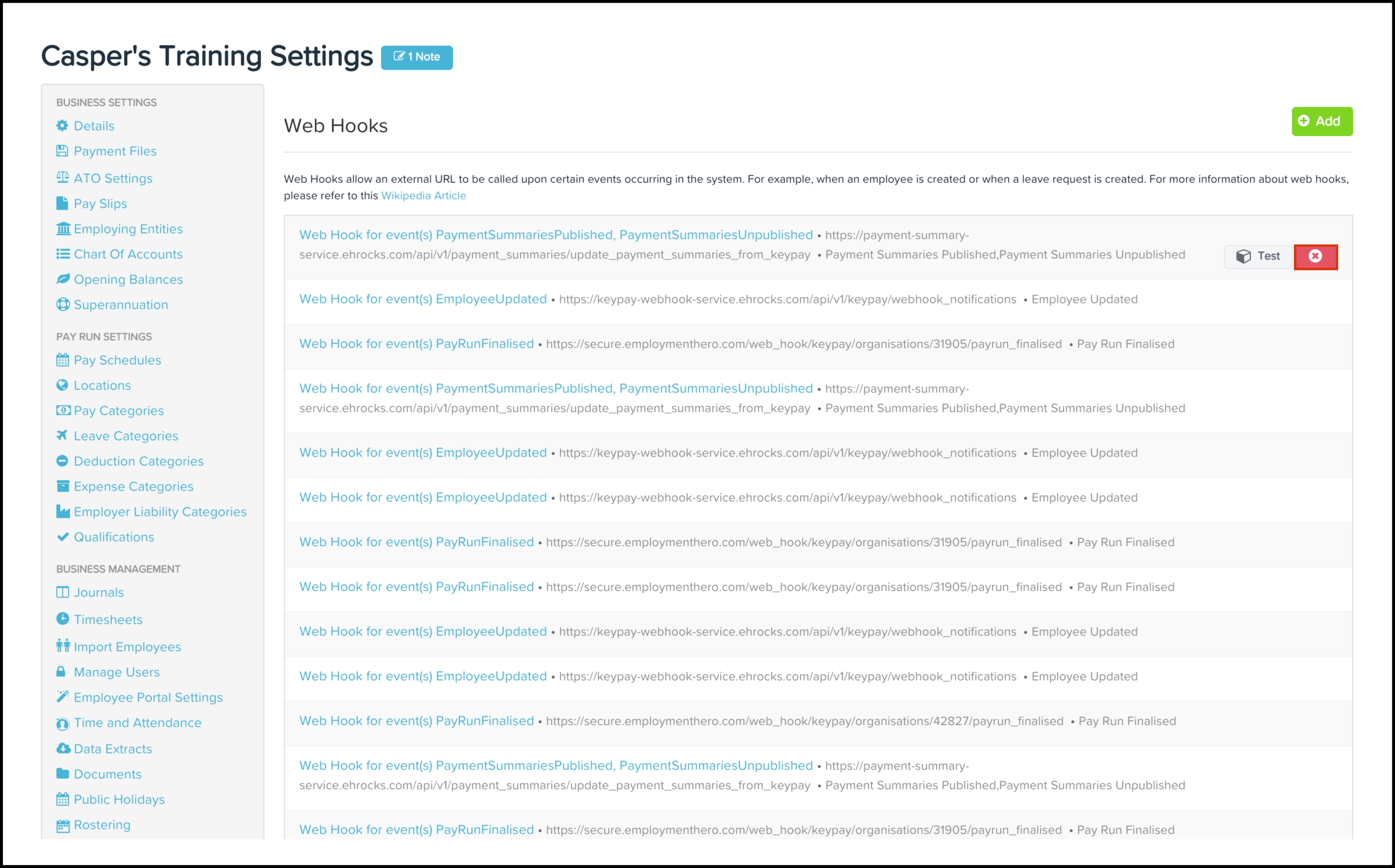

3. Click the Web Hooks button.

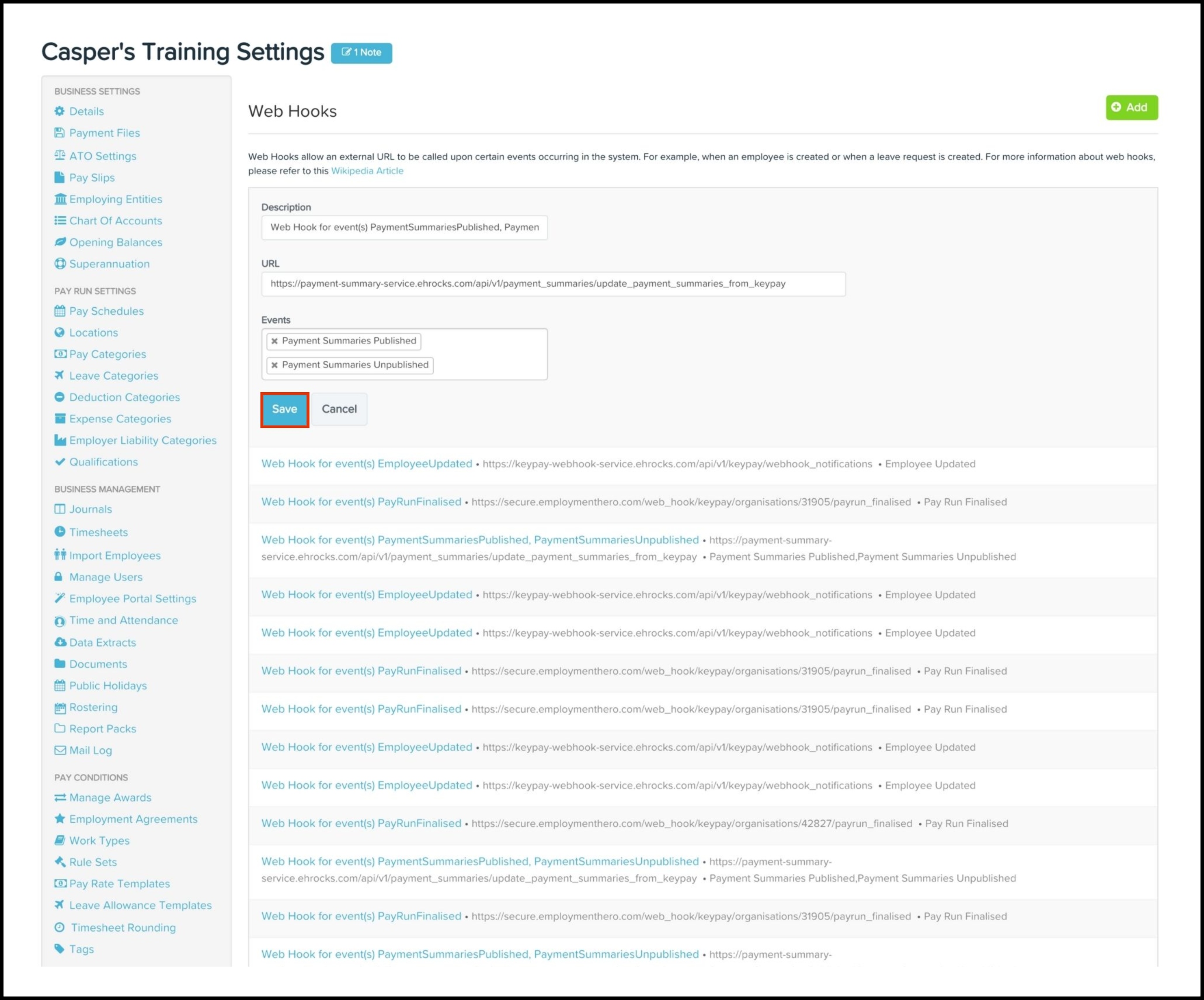

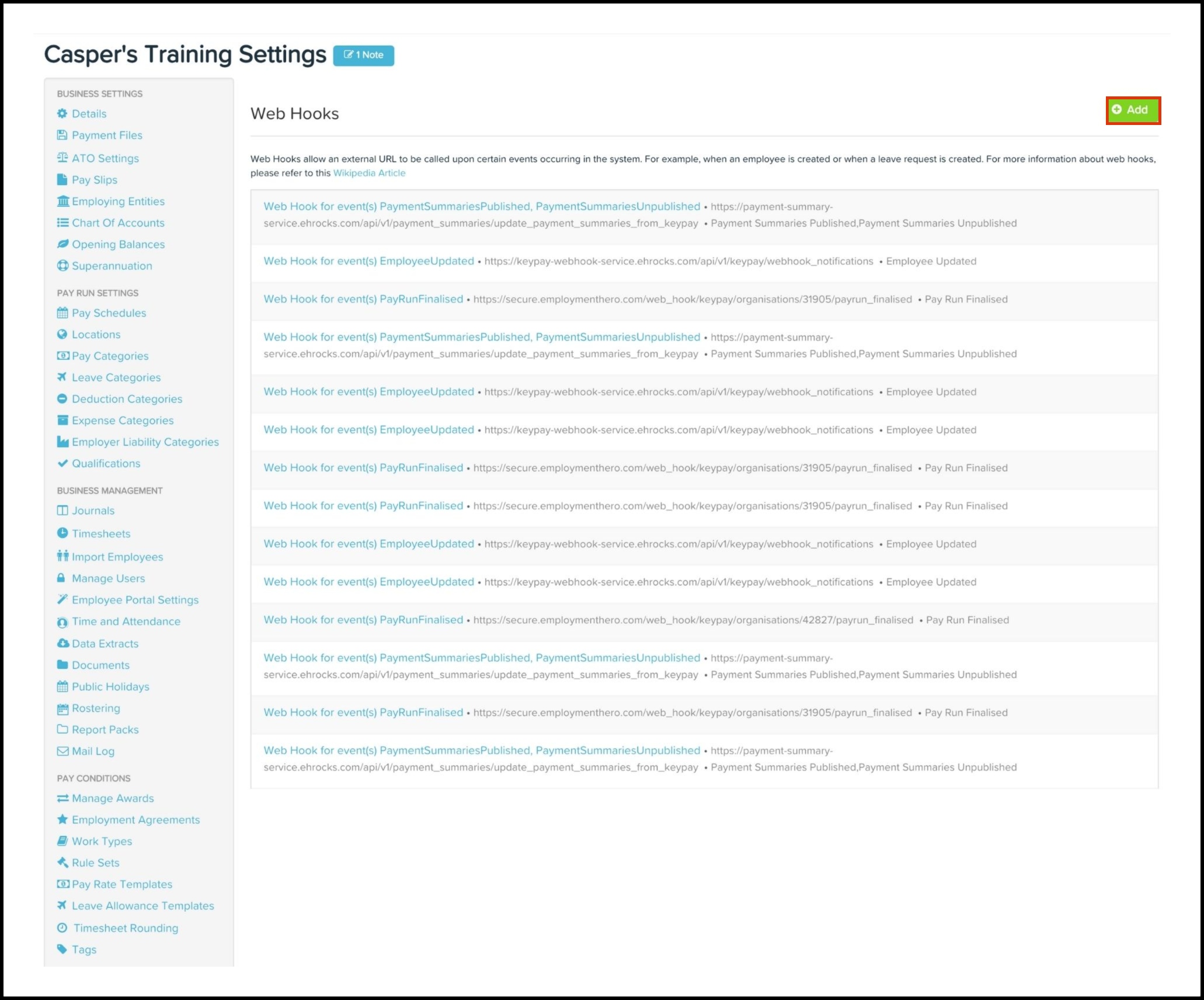

4. Click the Add button.

5. Complete the following fields:
   • Description.
   • URL.
   • Events.
6. Click the Save button.


1. Click the Business Settings menu.
2. Click the Payroll Settings submenu.
3. Click the Web Hooks button.

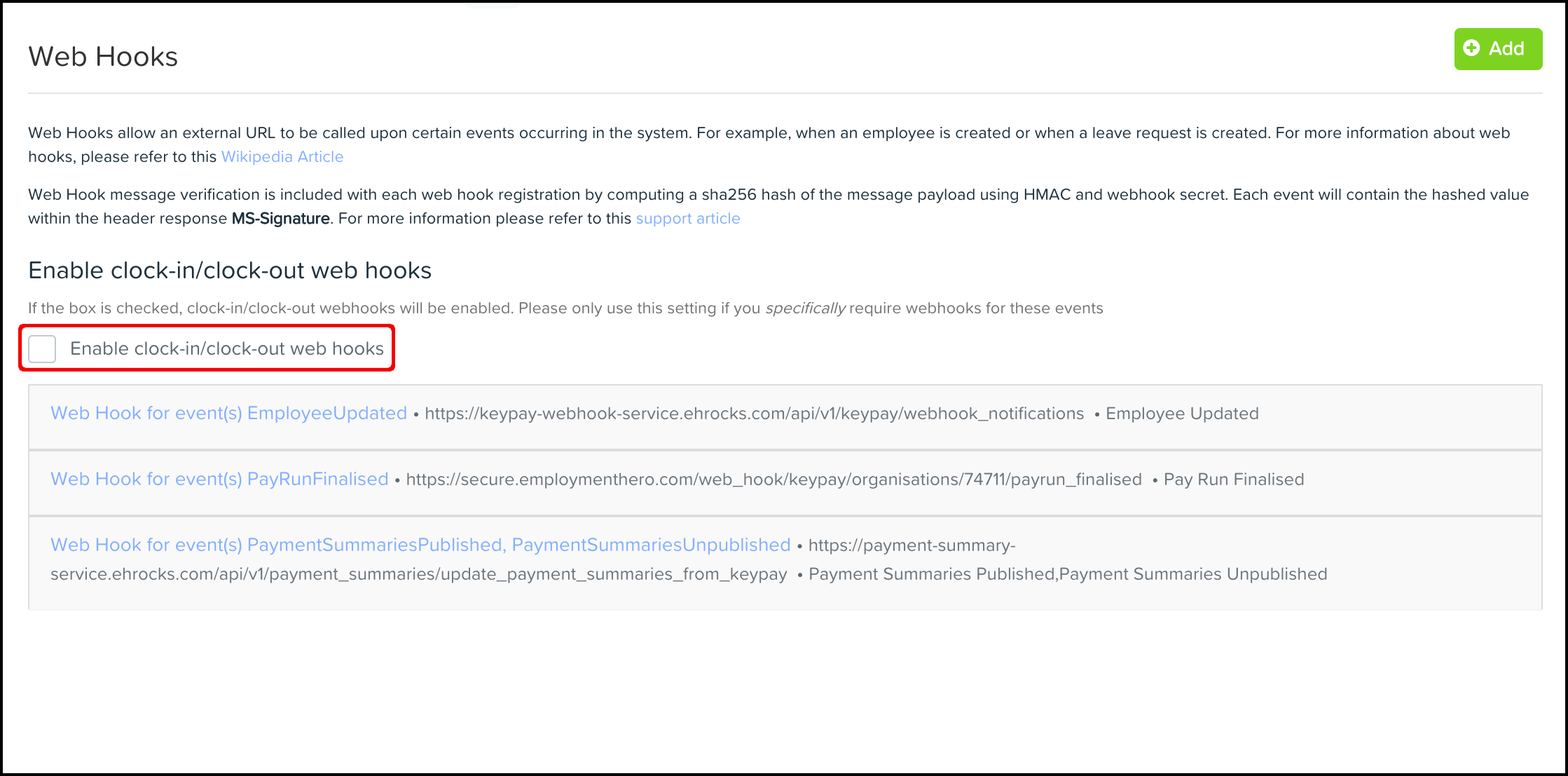

4. Tick Enable clock in/clock out web hooks checkbox. Please only use this setting if you specifically require web hooks for these events.


1. Click the Business Settings menu.
2. Click the Payroll Settings submenu.
3. Click the Web Hooks button.

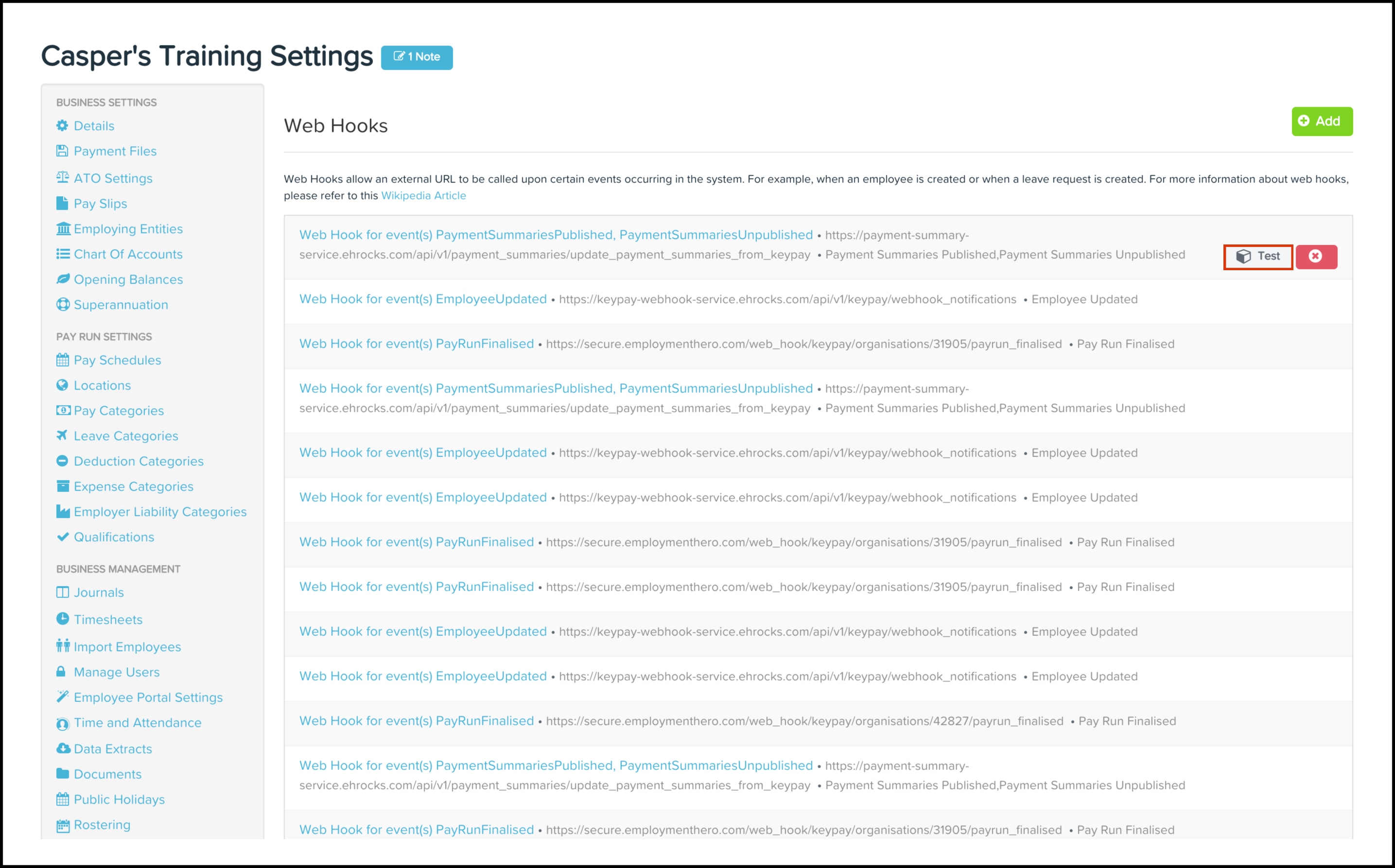

4. Click the Test button.

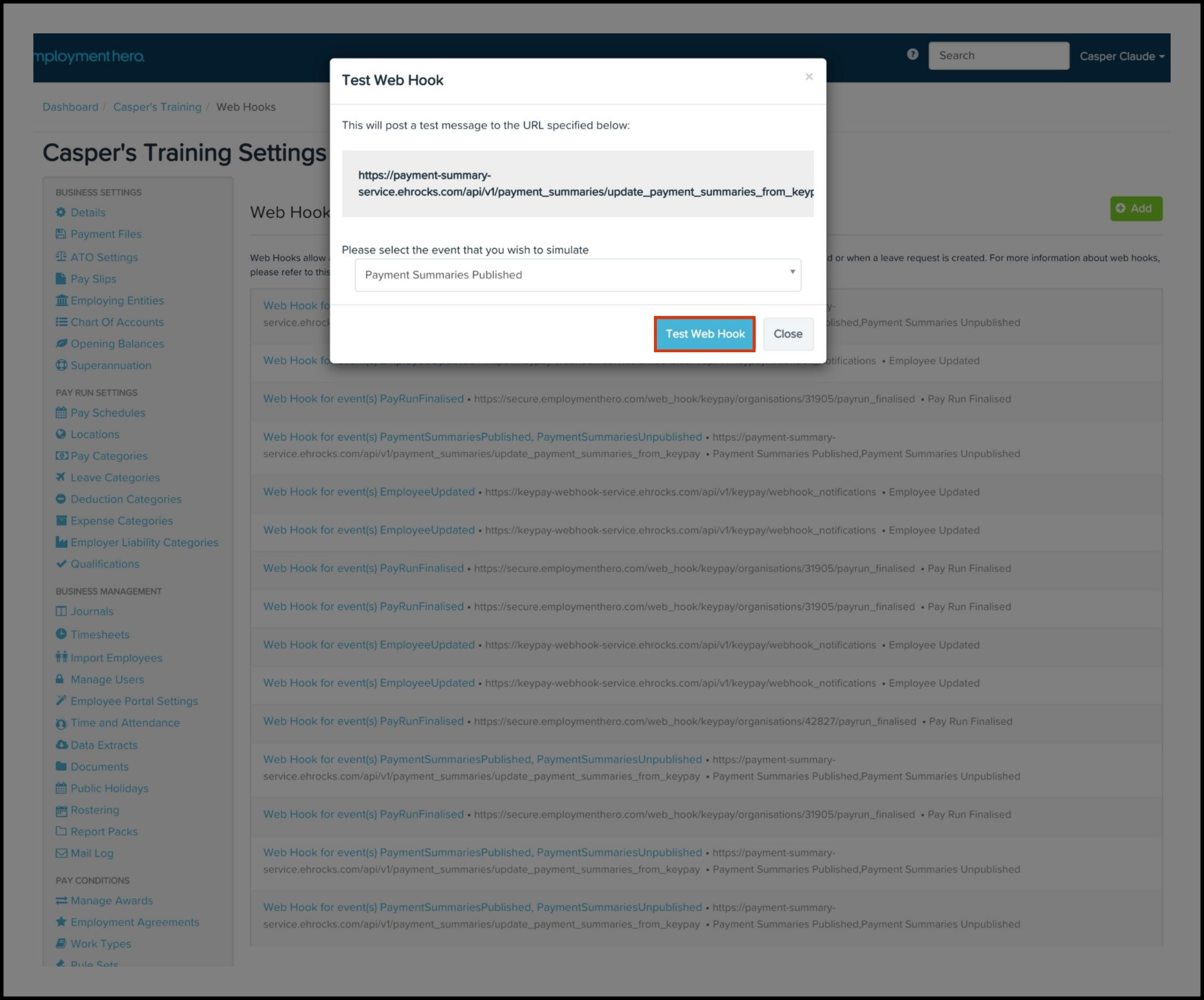

5. Select the required event and click the Test Web Hook button.


The Web Hook events (with message data types sent) that are currently available are:

• Employee Created (UnstructuredEmployeeModel)
• Employee Terminated (UnstructuredEmployeeModel)
• Employee Updated (UnstructuredEmployeeModel)
• Pay Run Finalised (PayRunModel)
• Pay Run Deleted (pay run ID)
• Pay Run Initialised (PayRunModel)
• Leave Request Created (HourLeaveRequestResponseModel)
• Bank Account Deleted (bank account ID)
• Bank Account Updated (BankAccountModel)
• Employee Recurring Deduction Deleted (deduction ID)
• Employee Recurring Deduction Updated (EmployeeRecurringDeductionModel)
• Payment Summaries Published
• Payment Summaries Unublished
• Leave Request Updated (HourLeaveRequestResponseModel)
• Leave Request Cancelled (HourLeaveRequestResponseModel)
• Leave Request Declined (HourLeaveRequestResponseModel)
• Leave Request Approved (HourLeaveRequestResponseModel)
• Leave Request Created (HourLeaveRequestResponseModel)

Data is sent inside a wrapper class (Microsoft.AspNet.WebHooks.WebHookWorkItem). eg:

{
    "Id": "62b45c1f7584400193a0879a163897b2",
    "Attempt": 1,
    "Properties": {},
    "Notifications": []
}

With the relevant data inside the Notifications array

Retry Intervals

If the call to the web hook URL does not return a 'success' result (for example a HTTP 200 or HTTP 201), it will be retried at increasingly higher delays.

• First attempt: Immediate
• Retry 1: 1 minute after first attempt
• Retry 2: 2 minutes after previous retry
• Retry 3: 4 minutes after previous retry
• Retry 4: 8 minutes after previous retry
• Retry 5: 15 minutes after previous retry
• Retry 6: 30 minutes after previous retry
• Retry 7: 1 hour after previous retry

If the web hook attempt is still not successful after 7 retries, it will not be re-attempted.

Event Message Verification

Web Hook message verification is included with each web hook registration by computed a sha256 hash of the message payload using HMAC and web hook secret. Each event will contain the hashed value within the header response MS-Signature

The example below shows an example request body, signature and secret. You can use an application like https://www.freeformatter.com/hmac-generator.html to test the resulting hash.

Please note the hash is sensitive to any whitespace in the request content. It's recommended that you read the content as a string without any formatting, then pass it through a HMAC hash generator library along with your secret.

Secret
OLgCtvLZU4h9GYzZgamuYGdn4e7Zk651

Signature
sha256=d33766c44cd7ce49134833e072d10866a6e021053bff7f72b92b1da07b85cd3e

Body

{
  "Id": "f62319a8e9594b1da89ee456525711ea",
  "Attempt": 1,
  "Properties": {},
  "Notifications": [
    {
      "Action": "BankAccountDeleted",
      "Type": "Test Message from Application"
    }
  ]
}

1. Click the Business Settings menu.
2. Click the Payroll Settings submenu.
3. Click the Web Hooks button.

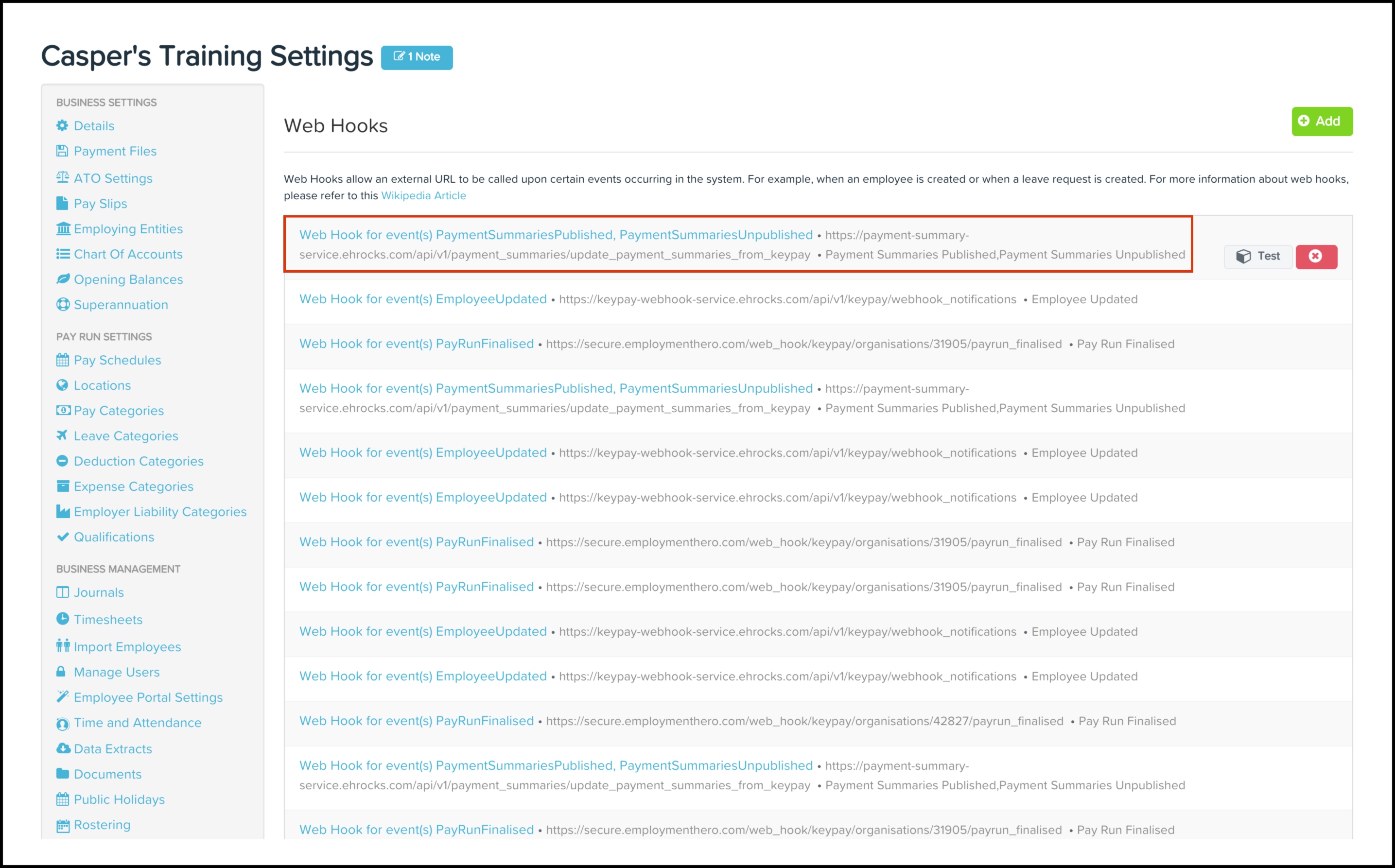

4. Click on the Webhook that needs editing.

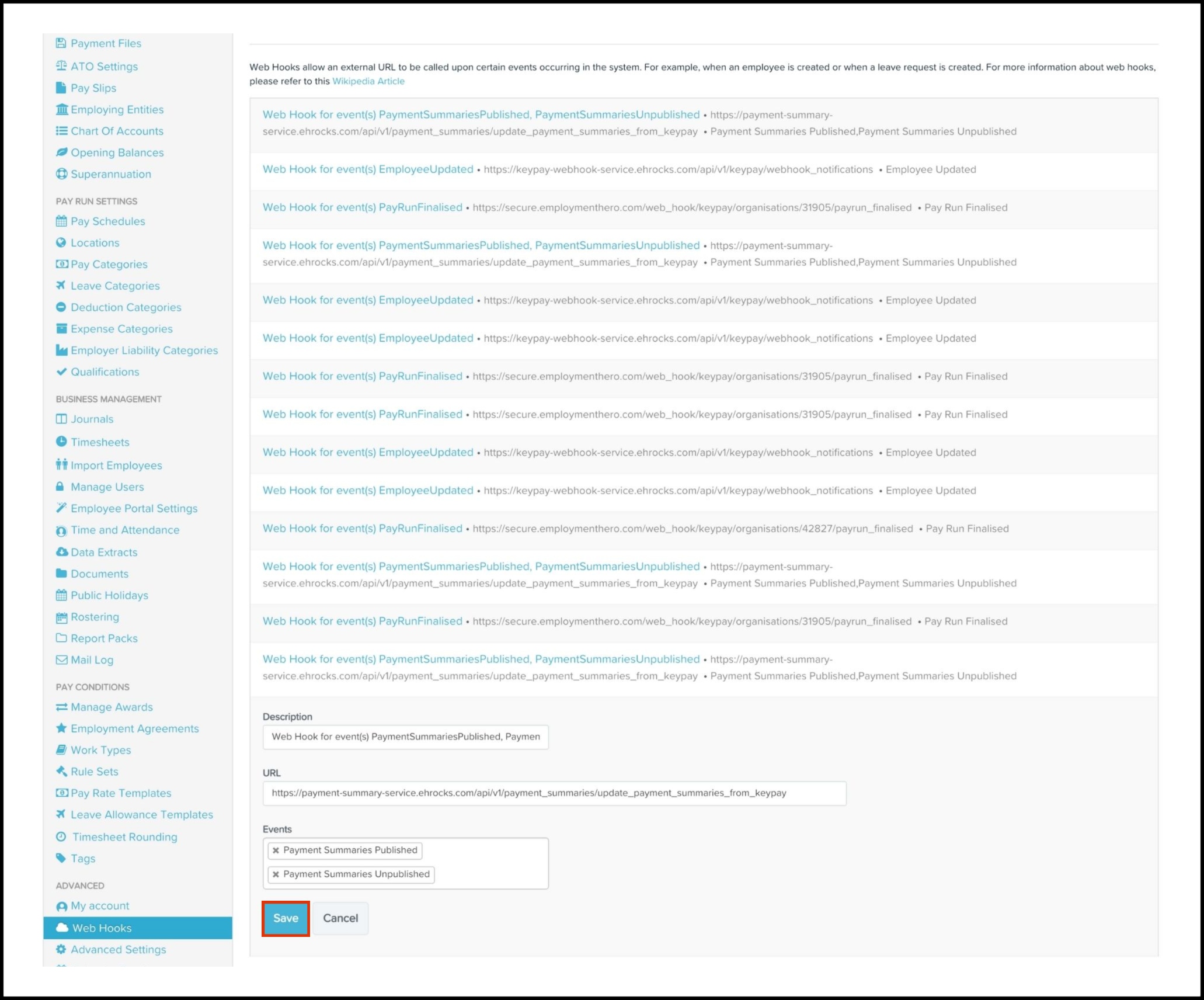

5. Make the required changed and click the Save button.


1. Click the Business Settings menu.
2. Click the Payroll Settings submenu.
3. Click the Web Hooks button.

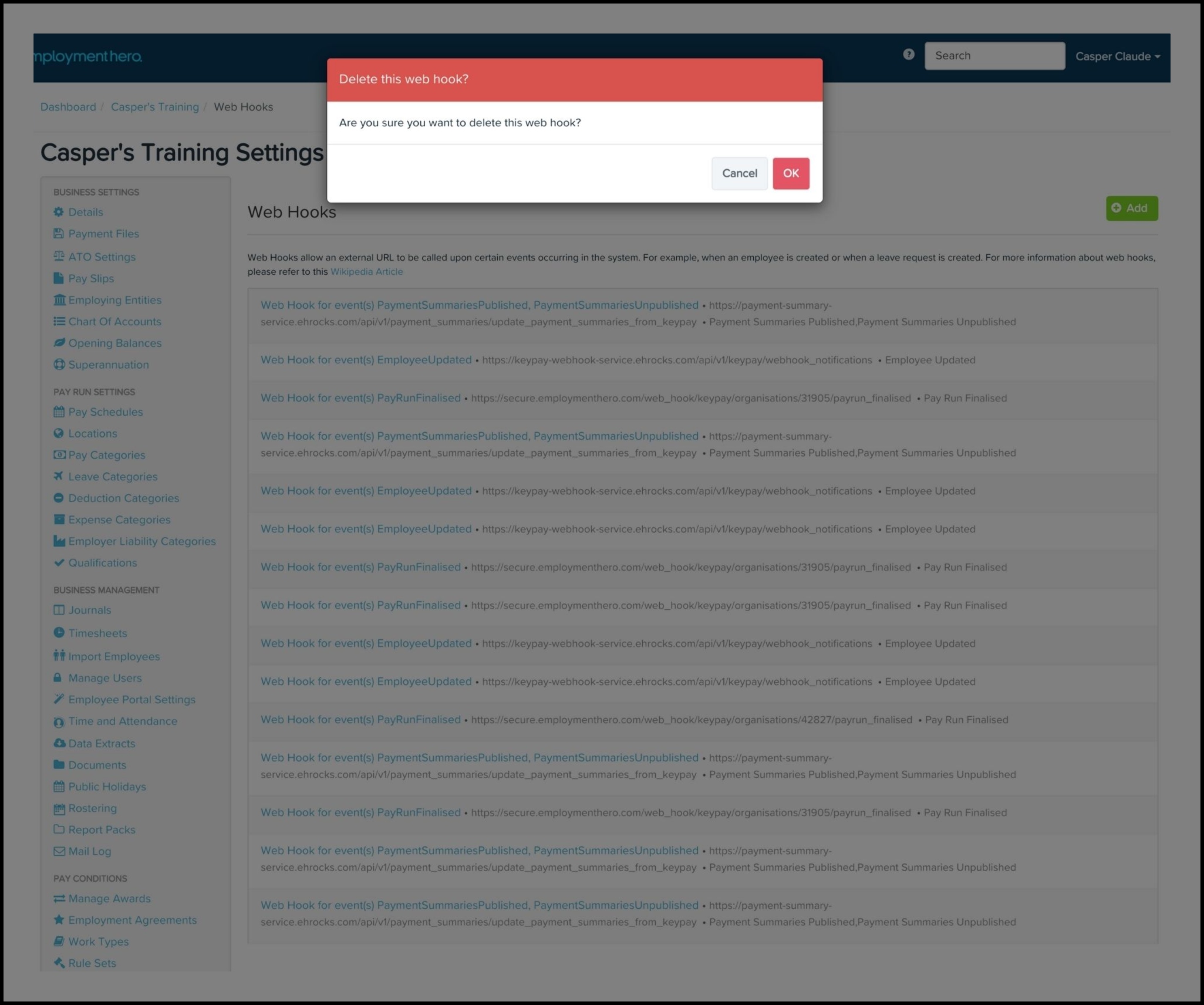

4. Click the Delete button..

5. Click the Ok button.
